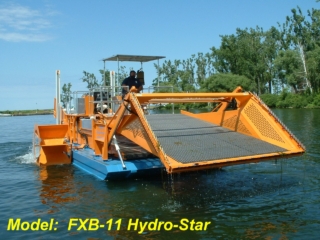

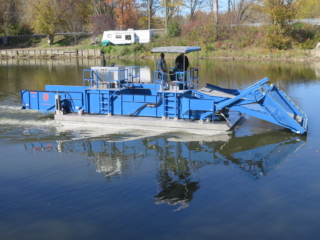

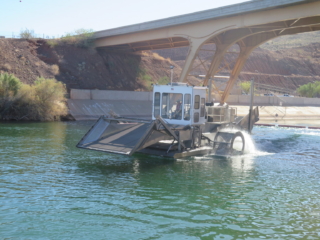

FX11 Waterweed Harvesters

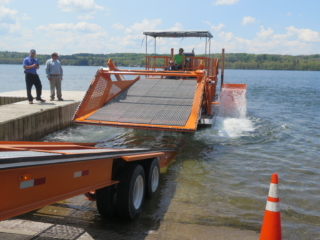

These are our largest sized capacity harvesters. They are designed for rapid deployment and fluid and effortless “site to site” transitions. This harvester series appeals to government entities or contractors who have several waterways to maintain. The elevated operator’s bridge has controls that can be easily tilted down for passages that require low clearances. The hydraulically powered paddle wheels can be tilted up and folded when needed for transport and storage.

Standard Features

A Complete Hydraulic System for all harvesting, load handling, and propulsion functions, with variable speed control at the operator's finger tips
Diesel Engine/Hydraulic Power Unit, with heavy-duty battery under a lift-up hood.
Lockable hydraulic oil and diesel fuel tanks, hydraulic directional valves, filtration.
Operator's platform with a seat and console with engine controls and monitoring system including warning lights, tachometer & hour meter, and hydraulic controls with pressure gauge.

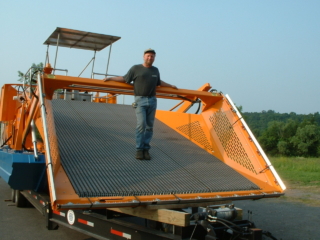

Conveyor belt system made of heavy-duty open mesh galvanized steel supported by UHMD plastic tracks and interchangeable floors.

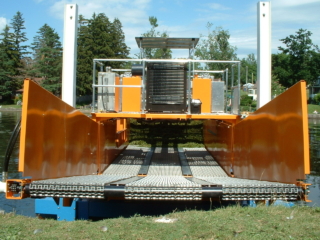

Harvesting head with adjustable depth setting, as well as swing back impact relief.
Storage Conveyor with load indexing and height adjustable discharge.
“Hydro-dynamically” shaped hulls, including multiple compartments, inner ribbing, tie and lift cleats, drains & vents, anti-skid deck, and bottom skids.

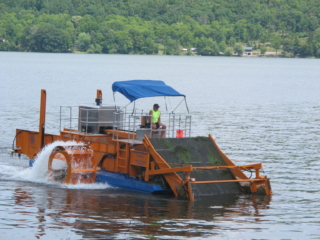

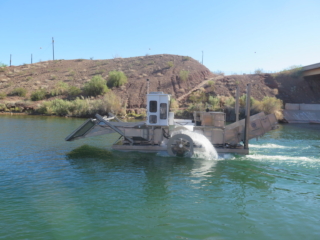

Two independent, bi-directional, hydraulically driven Paddle Wheels with variable speed controls.

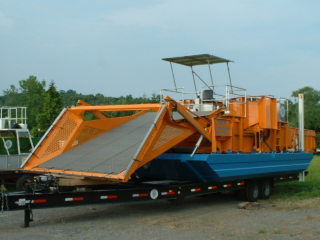

Paddle Wheel tilt-up system for road transport (on FX Models).
Railings & guards.
Stainless steel fasteners.
Marine coating, following sandblast preparation, included priming and finishing coats.
Standard colors are orange with blue accents.
Fire extinguishers and Life jacket.
Operators manual, parts catalog, and one year warranty.
